Vertical Multi Stage Pump

EMVI Series

Ebsray EMVI Series Vertical Multi Stage Pump

Specifications

• The EMVI pump is a non-self priming vertical multi stage pump coupled to a standard motor.
•  The motor output shaft directly connects with the pump shaft through a coupling.
•  The liquid end, located between the upper cover and the pump casing, is held in place by tie rods.
•  The pump casing is available with different configurations and connection types. The inlet and out let are located at the pump’s bottom at the same plane.

Operating Condition

• Delivery: up to 160 m3/h.
•  Head: up to 300 m.
•  Temperature of pumped liquid: -15°C to 120°C for
•  Ambient Temperature: up to 40°C

Electric motor

• Fully-enclosed air blast two pole standard motor.
•  IP55 protection, Class F Insulation
•  Standard Voltage: -Single-phase version: 220-240V, 50 Hz.,Three-phase version: 220-240V/380-415 V, 50 Hz

Fields of Application

• Handling of water, free of suspended solids, moderately aggressive liquids, demineralized water and glycol, etc. in the civil and industrial sectors.
•  Pressure boosting and Water supply systems, Water treatment plants.
•  Circulation of hot and cold water for HVAC systems, Boiler feed, Sprinkler & Hydrant systems.



Download (Pdf) – Vertical Multi Stage EMVI Series Pump

PSB Labelled Pump

Fire

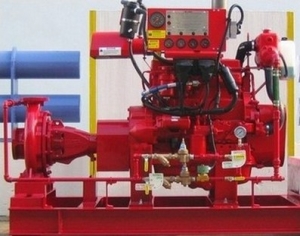

PSB Labelled Fire Pump

Specifications:

• Centrifugal End Suction Pump, back pull-out feature, standard construction cast iron casing, bronze impeller and stainless steel shaft, fitted with gland pack or mechanical seal.
• Available Electric Motor or Diesel Engine Driven pumpset.
• Duty: Ordinary Hazard Class 15 to 75 m (OH1, OH2, OH3).
• Working Pressure: max 16 bar.
• Temperature: max 105 deg C.

Applications:

Sprinkler System, Hydrant System for Commercial, Industrial and Public Buildings.



Download (Pdf) – PSB Labelled Fire Pump

Ebsray Marine Class Ship Pump

Fire

Ebsray Marine Class Ship Fire Pump

Ebsray pump offers a wide range of centrifugal split case pumps and end suction pumps displaying superior hydraulic performance and embracing recent advances in manufacturing technology.

Ebsray marine pumps are suitable for ship fire fighting application in ship building industry, and also designed to meet the requirements of NFPA20 standard and other regulatory bodies.

Specifications

• Capacities up to 3600 m3/hr.
•  Head up to 30 bar.
•  Speed up to 3000 rpm.
•  Temperature up to 100o C.
•  Split case and End suction design.
•  Single stage or Two stage design.
•  Horizontal or Vertical shaft configuration option for split case pump.
•  All possible branch orientation, CW & CCW rotation.
•  Wide material solution for fresh water or sea water application, including -Ni Al Bronze, Gun Metal LG2, Ductile Iron, Cast Steel, Cast iron, Ni Resist, etc.
•  Marine Class Certification by Lloyds, ABS, BV, DNV, GL, RINA, CCS, KR, etc.



Lobe Pumps

L & T Series

Ebsray L & T Series Lobe Pump
Fields of Application

All viscous products in chemical, oil, paint, resin, petrochemical, bitumen, molasses and sugar industries

Constructional Features

• Mechanical seal/Hydraulic packing
• Heating/Cooling jackets
• Reversible rotation and flow
• Integral bypass valve – optional
• Heavy duty design

Materials of Construction

• Casing – Cast Iron, Ductile Iron, Steel
• Rotors – Cast Iron, Ductile Iron
• Shaft – High tensile alloy steel, Stainless
• Special materials to specification.

Range of performance

• Flows to 4,980 L/min
• Pressures to 2,800 kPa
• Viscosities to 2,000,000 cSt



Download (Pdf) – Lobe Pumps

Internal Gear Pump

Z Series

Ebsray Z Series Internal Gear Pump
Fields of Application

Low flow general purpose industrial applications. Ideally suited for fuel oil transfer and injection processes particularly OEM uses

Constructional Features

• Mechanical seal/hydraulic packing
• Integral bypass valve – optional
• Direct coupling to synchronous speed motors
• High efficiency
• Robust, lightweight and compact

Materials of Construction

• Casing – Cast Iron, Ductile Iron
• Rotors – Ductile Iron, Cast Iron
• Shaft – High tensile hardened alloy steel

Range of performance

• Flows to 24 L/min
• Differential Pressures to 2,000 kPa
• Viscosities to 10,000 cSt
• Temperatures to 200°C



Download (Pdf) – Internal Gear Pump

LPG Vane Pumps

V Series

Ebsray V Series Vane Pump for LPG
Fields of Application

Road tanker mounting and fixed installation for loading and unloading of LPG, Propane and Butane.

Constructional Features

• Replaceable wearing components
• Balanced mechanical seals
• Positive axial location of rotor
• Multiporting configurations (some models)
• Double-ended shaft (some models)
• Bypass valve – integral adjustable
• Compact and robust

Materials of Construction

• Casing – Ductile Iron & Steel
• Rotors – Cast Iron, ADI – model dependent
• Vanes – Engineered plastic
• Liner – Cast Iron, ADI – model dependent
• Shaft – High Tensile Alloy Steel or Stainless Steel
• Special materials to specification

Range of performance

• Flows to 6,360 L/min
• Differential Pressures to 1,050 kPa
• Viscosities < 1cSt



Download (Pdf) – LPG Vane Pumps

LPG Regenerative Turbine Pumps

R/RC/RX Series

Ebsray Regenerative Turbine Pump for LPG
Fields of Application

LPG transfer, dispensing and refuelling in a variety of underground, aboveground and submersible installations.

R Series
Constructional Features

• Low maintenance – single stage impeller
• Direct coupling to standard 2-pole motors-EExe or EExd protection
• Simple balanced mechanical seal
• Throttle bush meets API 682 – ISO 21049 standard
• Extremely quiet, vibration free operation
• Very simple to service

Materials of Construction

• Casing – Ductile Iron to ASTM A395
• Impeller – Bronze as standard
• Shaft – High tensile alloy steel
• Special materials to specification.

Range of performance

• Flows to 138 L/min
• Pressures to 2400kPa
• Power Range to 7.5kW
• Speeds to 3500 RPM

RC Series
Constructional Features

• Low maintenance – single stage impeller
• Close coupled to standard IEC frame B5 flange mounted 2-pole motors-EExe or EExd protection
• Unique cartridge design mechanical seal
• Integral API 682-ISO 21049 compliant throttle bush
• Extremely quiet, vibration free operation
• Very simple to service

Materials of Construction

• Casing – Ductile Iron to ASTM A395
• Impeller – Bronze as standard
• Shaft – High tensile alloy steel
• Special materials to specification.

Range of performance

• Flows to 90 L/min
• Pressures to 2400kPa
• Power Range 1.5, 2.2 & 3.0kW
• Speeds to 3500 RPM

RX Series
Constructional Features

• Single Stage regenerative turbine pumping element
• Certified design explosion proof submersible electric motor
• Integral enhanced safety features
• Seal-less design
• Unique “Chem Trim”™ build (Model dependant)
• Extremely quiet operation

Materials of Construction

• Casing – Ductile Iron/Steel
• Impeller – Bronze as standard
• Bearings – Carbon Composite
• Special materials to specification.

Range of performance

• Flows to 180 L/min
• Pressures to 2400kPa
• Power Range 2.2 & 3.7kW
• Speeds to 3500 RPM



Download (Pdf) – LPG Regenerative Turbine Pumps

Sliding Vane Pumps

V Series

Ebsray V Series Sliding Vane Pump
Fields of Application

Road tanker mounting and fixed installation for loading and unloading of Petroleum products such as: petrol, distillate, aviation fuels, lubricating oils, LPG, chemicals solvents and edible oils.

Constructional Features

• Replaceable wearing components
• Balanced mechanical seals, Shaft lip seals
• Positive axial location of rotor
• Multiporting configurations
• Double-ended shaft (some models)
• Bypass valve – integral adjustable
• Lightweight or standard
• Compact and robust

Materials of Construction

• Casing – Cast Iron, Ductile Iron, Aluminum, Steel
• Rotors – Cast Iron, ADI – model dependent
• Vanes – Engineered plastic
• Liner – Cast Iron, ADI – model dependent
• Shaft – High Tensile Alloy Steel or Stainless Steel
• Special materials to specification

Range of performance

• Flows to 6,360 L/min
• Pressures to 1,100 kPa
• Viscosities to 10,000 cSt
• Temperatures to 100°C



Download (Pdf) – Sliding Vane Pumps – V Series

Split Case Pumps

EHS & EHSV Series

Ebsray EHS Series Centrifugal Split Casing Pump

Ebsray EHS Series is a modern range of axially split case pumps displaying superior hydraulic performance and embracing recent advances in manufacturing technology.

Performance Highlights

• High operating efficiency over a wide range of capacities, this ensures lower operating costs.
• Stable head – capacity & non-overloading characteristics.
• Stable suction performance and low NPSHR.
• Pump runs with low noise and minimal pressure pulsation ensuring environment friendly operation.
• Low shaft stress and  deflections.
• High head units are supplied with double volute casings to reduce radial thrust load.
• Over fifty frames to ensure optimum selection for all duties.

Materials of Construction

• Casing – Cast Iron
• Impeller – Bronze
• Wear Ring – Bronze
• Shaft – Stainless Steel
• Shaft Sleeve – Bronze
• Sealing – Gland packing or Mechanical Seal

Operating Range

• Pump Size:  50 mm to 400 mm
• Capacity:  Maximum 1000 l/sec
• Total Head:  Maximum 280 meter
• Working Pressure:  Maximum 25 bar
• Temperature:  10⁰ C to 90^o C
• Speed:  Maximum 3600 RPM



Download (Pdf) – Split Case Pumps – EHS & EHSV Series

Internal Gear Pumps

MD & HD Series

Ebsray MD & HD Series Internal Gear Pump

Universal industrial pumps for handling a wide range of liquids for chemical, oil, food, ink, paint, paper, petrochemical, sugar, pharmaceutical and others

Constructional Features

• Mechanical Seal or Gland Packing
• Heavy Duty Bearings
• Heating / Cooling Jackets
• Integral bypass valve optional
• Variety of porting configurations
• Heavy duty design

Materials of Construction

• Casing : Cast Iron, SG Iron, Steel, SS
• Rotors : SG Iron, Steel,SS
• Shaft : High Tensile Steel
• Corrotion and abration resistant materials are available to meet specification

Range of Performance – HD

• Flows to 40 lits/Sec
• Pressures to 2,000 kPa
• Viscosities to 1,000,000 cSt
• Temperatures from -40°C to 350°C

Range of Performance – MD

• Flows to 20 lits/Sec
• Pressures to 1,300 kPa
• Viscosities to 1,000,000 cSt
• Temperatures from -40°C to 350°C



Download (Pdf) – Internal Gear Pumps MD & HD Series
